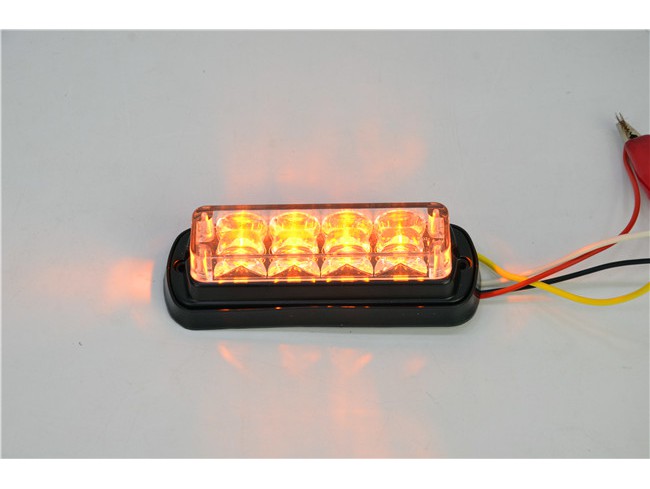

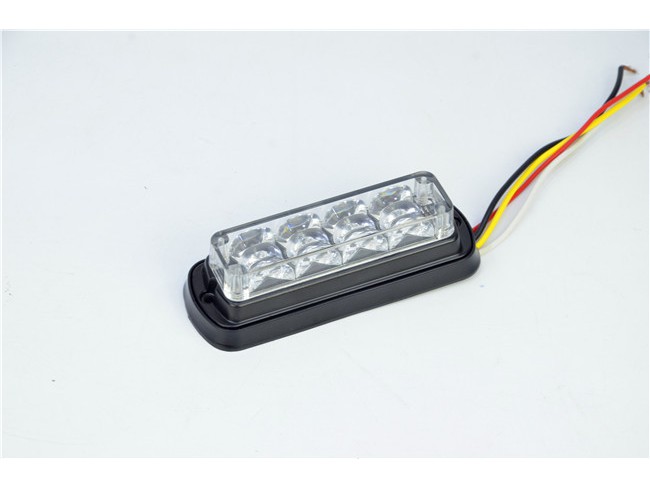

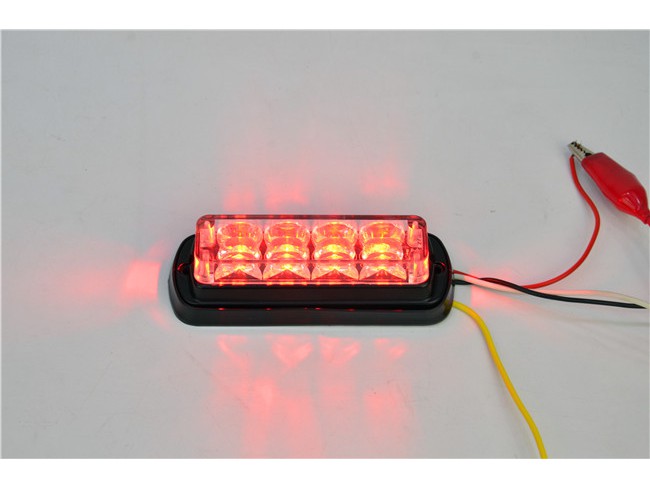

3W LEDS TYPE SURFACE MOUNT HEADLIGHT NO.ZXGXT-D9



Weight: 0.3 kg

Product Size (L x W x H): 11.70 x 3.80 x 3.00 cm

DESCRIPTION: DC12-24V, Gen3rd 3W type Leds, 4pcs LED tube in total, IP67 water-proof,

                              many kinds of flash patterns





Golden lights^TM features a high intensity wide-angle light spread and is easy to mount.

The lense is made from high quality polycarbonate material with high rigidity and strong impact force.

Better performance on waterproof,dustproof and shockproof.

Longer life span,Lower cost,Lower energy consumption with good remote visual display.





Standard Model:

DC12V-24V

High power Gen3rd 3W led's,4pcs LED tube in total

Product Dimension:117Lmmx38mmWx30mmH

Power:12W

Average current draw:500mA@12.8VDC

Max current draw:700mA@12.8VDC

Waterproof rate: IP67

Waterproof ready for exterior mounting

Self-contained 16 flashing patterns,Alternating or simultaneous flashing,4 wires for simple set-up-1 pos,1 Neg,1 sync and 1 pattern aluminum base

Four wires, one Red wire for "+",one black wire for "-",one wire for change flashing patterns,one wire for synchronization

Aluminum base easy to cooling and PC (Polycarbonate) Lens

Life span:30000hrs

3 years warranty on Golden^TM Lightheads

Meets CE,Rohs,ISO14001 Specifications

Working temperature can be -45℃ to 55℃





Available in various colors: red, blue, amber, white and green
