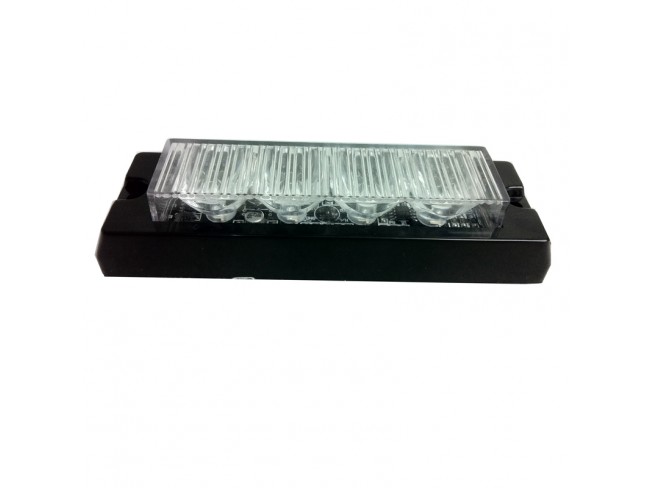

LED DECK DASH GRILLE LIGHT NO.ZXGXT-S4



DESCRIPTION: DC9-30V, Gen3rd 1W TIR type Leds, 22 kinds flashing patterns, Support hi/low power changed, IP67 water-proof





Golden lights^TM features a high intensity wide-angle light spread and is easy to mount.

The lense is made from high quality polycarbonate material with high rigidity and strong impact force.

Better performance on waterproof,dustproof and shockproof.

Longer life span,Lower cost,Lower energy consumption with good remote visual display.





Standard Model:

DC9-30V Dual Voltage

1W Gen-III LED tube,Total 4 pcs LED tube

Power:4W

Waterproof rate:IP67

22 kinds flashing patterns,synchronized working

Four wires, one Red wire for "+",one black wire for "-",one wire for change flashing patterns,one wire for synchronization

Aluminum base easy to cooling and PC (Polycarbonate) Lens

Mounting:Surface mounting

Life span:30000hrs

3 years warranty on Golden^TM Lightheads

Meets CE,Rohs,ISO14001 Specifications

Working temperature can be -45℃ to 55℃





Red,Blue,Amber,White,Green color optional,color can mix and match.

Support high/low power changed.

Support synchronous or asynchronous above 2 sets.
