Product Description

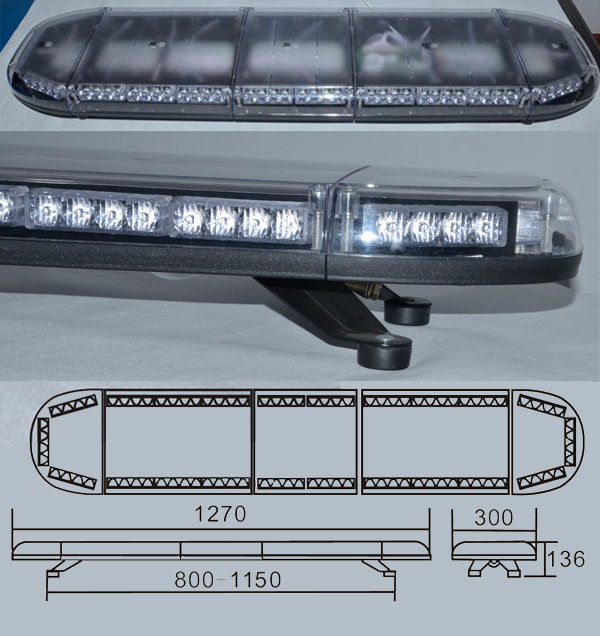

Led Lightbar  TBD-GRT-046A

Product details

Lightbar will be used in Emergency Vehicle.such as Police car, Fire truck, Ambulance and so on...

Special lightbar with multifunctions for different kinds of vehiclesThe Lense of LED lightbar is made from high quality polycarbonate material with high rigidity and strong impact force. The surface of the dome have been plated with protective coating, which made colour not easy to fade. It is weather-proof, which means the superior sealed function. The base material is aluminum. The workingtemperature can be -45°C to 50°C.

Specification:

.DC12V OR 24V

.Color: Red,Blue,Amber,Clear

.Length: 830mm,1030mm,1070mm,1170mm,1270mm,1300mm,

             1370mm,1500mm,1700mm,1850mm

.High Power Gen 3rd  LED Brand(22PCS LED Modules 4pcs per led module)

.Polycarbonate Lens  Width:30CM,Height:7CM(With Leg:14CM),Length:127CM

.Aluminum base: 0.32CM Thick at the bottom

.Mounting bracket will be integrated with Alunimum base

.Water-proof Class: IP65

.Include 15 kinds flashing patterns, Option Take down,Alley light,Traffic advisor

.Control box can be choice 2 Switches,4 Switches, 5 Switches,More than...

.Packing Size:126X37X26CM

.Weight: 19KG

______________________

>>Shape
