Product Description

Led lightbar  TBD-GRT-2987

Product details

Lightbar will be used in Emergency Vehicle.such as Police car, Fire truck, Ambulance and soon...

Special lightbar with multifunctions for different kinds of vehiclesThe Lense of LED lightbar is made from high quality polycarbonate material with high rigidity and strong impact force. The surface of the dome have been plated with protective coating, which made colour not easy to fade. It is weather-proof, which means the superior sealed function. The base material is aluminum. The workingtemperature can be -50°C to 50°C.

Reliable control panel, with switches to control light bar .

Specification:

.DC12V or DC24V

.IP Class: IP65

.Color: Red, Blue, Amber, White, Green

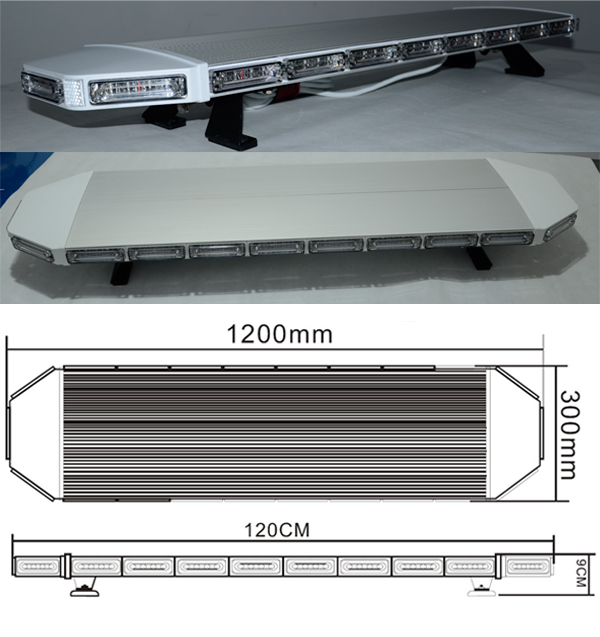

.Dimension:120×30×9 CM (47''×12''× 4'')

.Install:Mounting bracket & bolt

.High Power Gen3rd 1W Linear type LED (22PCS LED Modules 4pcs per led module)

.Polycarbonate Lens Width:30CM,Height:5CM(With Leg:9CM),Length:150CM

.Aluminum base: 0.32CM Thick at the bottom and Up-Dome, Both end ABS materials

.Mounting bracket will be integrated with Alunimum base

.Include 15 kinds flashing patterns, include Take down,Alley light,Traffic advisor

.Control box can be choice 2 Switches,4 Switches, 5 Switches,More than...

.Packing Size and Weight:

132X35X20CM Weight:22KG

______________________

>>Shape

 LED type, 22pcs led module, include control box and mounting brackets

PC Lens and Aluminum base
