ProductsHome » Products » New Products

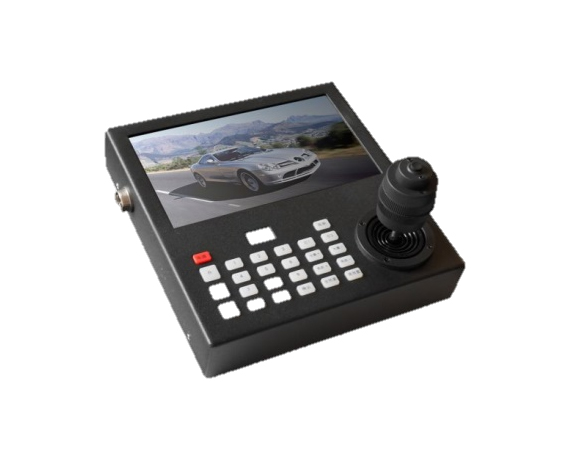

Vehicle visual keyboard controller DSP4DX7W

Item No: 871

Product Description

Network IP /AHD /SDI PTZ 4D High Speed Dome Camera Joystick Network Keyboard Controller

The main function

● built-in solid-state hard drive, the end of the traditional mechanical hard disk vehicle seismic shortcomings and greatly improve the read and write speed.
● Supports external video storage devices, such as: U disk, removable hard disk.
● Support national standard ONVIF protocol, support Highprofile S, Highprofile G, can be connected to meet ONVIF, RTSP standards and many manufacturers of network cameras.
● Support all channels with the screen display, support 4-screen preview of the mainstream.
● real-time capture, that is, grasping to see; and set up a separate area in the hard drive to save the map.
● Operating system: embedded LINUX operating system / built-in RS485 PELCO-D control system
● Image coding control: Image coding quality can be adjusted, variable bit stream and optional code stream optional
● Dual stream: Each channel can be set
● Video standard: 1080P (1920 × 1080) 30 frames / 960P / (1280 × 960) / 720P (1280 × 720) 30 frames / second
● Display size: 7 inches
● Resolution: 1024 × (RGB) × 768
● Monitor image quality: 1080P (1920 × 1080) / 960P / (1280 × 960) / 720P (1280 × 720)
● Dynamic image detection: each screen can detect multiple detection area, you can set the sensitivity of 6 (IPC support required)
● Image playback quality: 4-channel 720P / 960P 4-channel synchronous playback, 1/4 1080P mode 1080P playback
● Area block setting: 4 blocks for each zone (IPC support is required)
● Recording mode: support manual, automatic, dynamic monitoring, alarm triggered recording mode (some need IPC support)
● Backup method: support hard disk, U disk, USB mobile hard disk, USB burn, network storage and backup
● Operation: mouse / joystick / button
● Local login: User name and password
● Video recording: local hard disk, network
● External interface: network video
● Input (mode):
   4 × (1280 * 720) + sub [960 * 576] + 4Ref. + 4Play 4 way 1 million IP network cameras
   4 × (1280 * 960) + sub [960 * 576] + 1Ref. + 4Play 4-way 1.3 million IP network cameras
   4 × (1920 * 1080) + sub [960 * 576] + 4Ref. + 1Play 4 way 2 million IP network cameras
   1 × (1920 * 1080) + sub [960 * 576] + 4Ref. + 1Play 1 way 2 million IP network cameras
   4 × (720 * 576) + sub [352 * 288] + 4Ref. + 4Play 4 way 400 thousand IP network camera
● Network interface: 1 RJ45, 10M / 100M adaptive Ethernet port
● USB interface: 2 USB 2.0 ports
● Control interface: Network ONVIF, RS-485
● Hard disk: maximum capacity Each interface supports a maximum capacity of 4TB hard disk
● Overall dimensions: 192 × 189 × 108 (mm)
● Power supply: 12V2A
● Power consumption: ≤10 without hard disk)
● Operating temperature: -10 ℃ ~ +55 ℃
● Operating Humidity: 10% -90%
● Installation: car bracket
