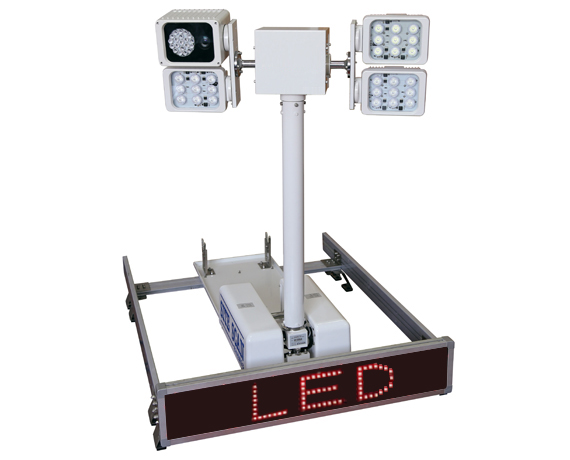

● lifter pole height of 1.2 meters, lifting the angle of 0 ~ 90 °

● large angle display, a backlight, you can at any time during the day or night operation

● suitable for cars, pickups and other small and medium-sized vehicle equipped.

● High-speed rotating head equipped with cameras, light, to achieve full-range search and positioning and surveillance video function

● used in road traffic control, on-site incident handling, emergency lighting.



System operating voltage: DC12V

Camera Specifications: 2 megapixel 1 / 2.8 inch "Exmor" CMOS 20x optical zoom

Lamp working voltage: DC12V

Light source type: LED flood light + condenser

Lamp working power: 120W*3

Horizontal, vertical rotation speed: 6r/min

LED Specifications: lux 45mil 120-130lm/W

LED luminous flux: Maximum 57600 (lumens)

Lamp Brand: CREE

Horizontal rotation radius of the lamp: 410(mm)

Horizontal rotation angle: 380°

Vertical rotation angle: 330°

weight: 50kg
