Product Description

Led lightbar  TBD-GRT-029

Product details

Lightbar will be used in Emergency Vehicle.such as Police car, Fire truck, Ambulance and soon...

Special lightbar with multifunctions for different kinds of vehiclesThe Lense of LED lightbar is made from high quality polycarbonate material with high rigidity and strong impact force. The surface of the dome have been plated with protective coating, which made colour not easy to fade. It is weather-proof, which means the superior sealed function. The base material is aluminum. The workingtemperature can be -45°C to 50°C.

Reliable control panel, with switches to control light bar .

Specification:

.DC12V OR 24V

.High Power 1W Gen 3rd  LED TIR Type(20PCS LED Modules 4pcs per led module)

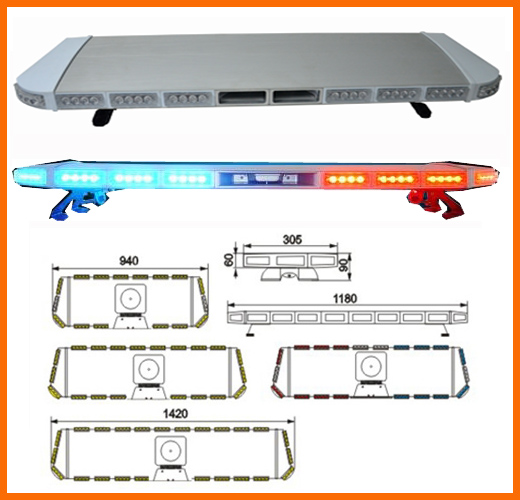

.Polycarbonate Lens Width:30.5CM,Height:6CM(With Leg:9CM),Length:118CM

.Length: 940mm, 1180mm, 1420mm

.Color: Red, Blue, Amber, White, Green

.IP Class: IP65

.Aluminum base: 0.32CM Thick at the bottom and Up-Dome, Both end ABS materials

.Mounting bracket will be  integrated with Aluminum base and 100W speaker  integrated

.Include 15 kinds flashing patterns, include Take down, Alley light, Traffic advisor

.Control box can be choice 2 Switches,4 Switches, 5 Switches, More than...

.Packing Size and Weight:

  96X37X19CM  Weight: 18KG (94CM Length)

 126X37X19CM  Weight:208KG (118CM Length)

 148X37X19CM  Weight: 22KG (142CM Length)
