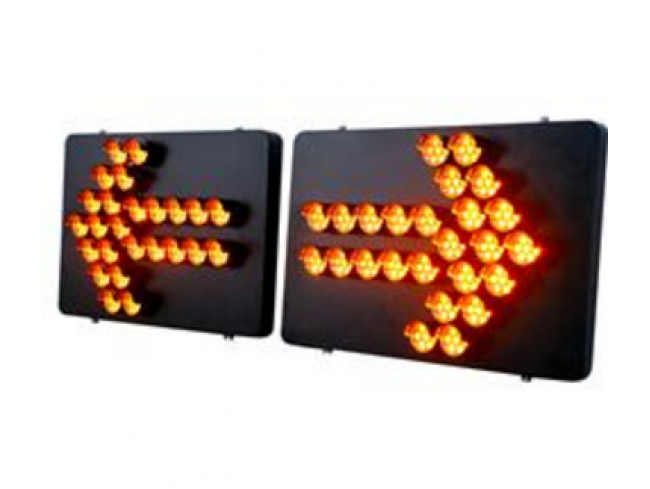

ROAD SAFETY SIGN BOARD TRAFFIC ARROW SIGN LIGHT NO.TAL-GRT-006



Product Size (L x W x H) : 55.00 x 40.00 x 9.00 cm

DESCRIPTION : DC12V,Using 100mm Pixel tubes,with 25 pcs of LED tubes per module,total 50 pcs of led tubes,many kinds of flash pattern to choose with controller





Lights can be synchronized for simultaneous or alternating flashing.

Design for interior or exterior usage.

Shock-proof and waterproof.

Includes adjustable ''L'' brackets for dash/deck or headliner mounts.





Standard Model:

DC12V

Product Dimension:550mm(L)x400mm(W)x90mm(H) (21.6''x15.7''x3.5'')

Light source:Using 100mm Pixel tubes,with 25 pcs of LED tubes per module,total 50 pcs of led tubes

Lum:100~800 MCD

6M cables with Remote control

Visual range: ≥ 800m

LED Power:26W

Frequence:1~3HZ

Controlled and managed by electronic card containing a microprocessor.

Waterproof ready for exterior mouting,IP65

Mounting:Set indoor or outdoor high intensity screw

Aluminum base easy to cooling and PC (Polycarbonate) Lens

Use special microchip controlling circuit

Visible during daytime conditions

Life span:30000hrs

1 years warranty on Golden^TM Lightheads

Meets CE,Rohs,ISO14001 Specifications

Working temperature can be -30℃ to 65℃

Many kinds of flashing patterns, synchronized working,pattern memory​





DC12 OR 24V

Colors are optional within blue, red, amber, white

Size can be customized

Cable length can be customized

Flash patterns can be customized
