LED LIGHT CIRCUIT BOARDS LED SLIM LIGHT BOARD NO.TAL-GRT-003



Product Size (L x W x H) : 125.00 x 13.00 x 50.00 cm

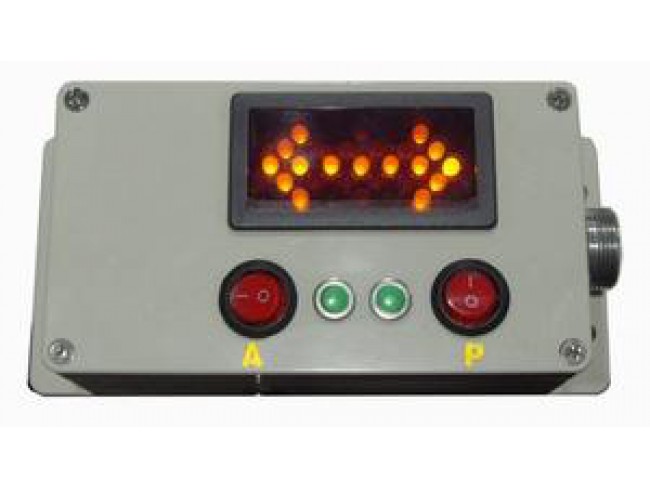

DESCRIPTION : Using 96mm Pixel tubes,with 15 pcs of LED tubes, many kinds of flash pattern to choose with remote LED display controller





Lights can be synchronized for simultaneous or alternating flashing.

Design for interior or exterior usage.

Shock-proof and waterproof.





Standard Model:

DC12V

Product Dimension:1250mm(L)x130mm(W)x500mm(H) (49.2''x5.1''x19.7'')

Light source:Using 96mm Pixel tubes,with 15 pcs of LED tubes

Flash Frequency(n/min):40~60

Lum:>=6000 MCD

22 M cables with Remote control

Visual range: ≥ 800m

LED Power:<=0.5W

Frequence:1~3HZ

Controlled and managed by electronic card containing a microprocessor.

Waterproof ready for exterior mouting,IP65

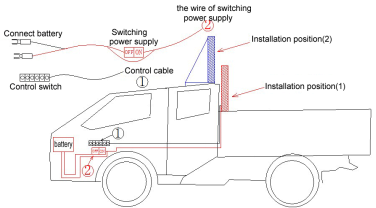

Mounting:Set indoor or outdoor high intensity screw

Aluminum base easy to cooling and PC (Polycarbonate) Lens

Use special microchip controlling circuit

Visible during daytime conditions

Life span:100000hrs

1 years warranty on Golden^TM Lightheads

Meets CE,Rohs,ISO14001 Specifications

Working temperature can be -30℃ to 65℃

Many kinds of flashing patterns, synchronized working,pattern memory​





DC12 OR 24V

Colors are optional within blue, red, amber, white

Size can be customized

Flash patterns can be customized
