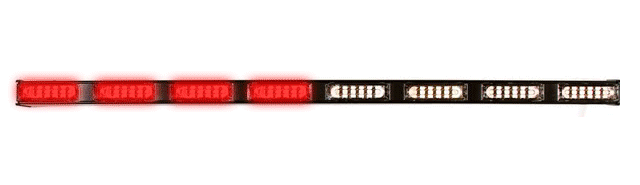

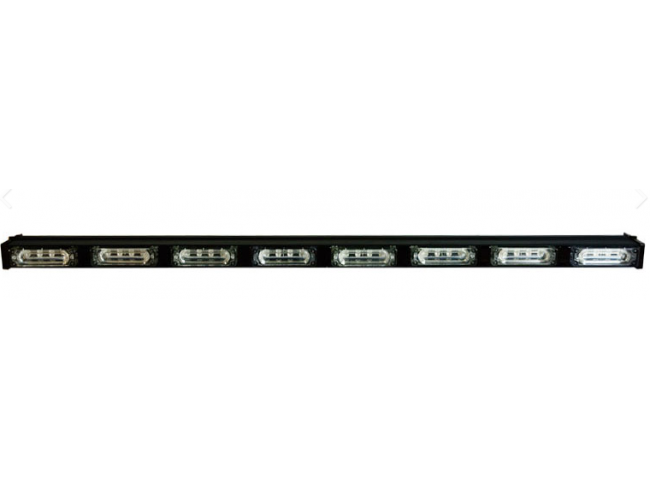

DUAL COLOR LED TRAFFIC LIGHT WATERPOOF NO.DRL-RGB-009L



Weight : 1.86 kg

Product Size (L x W x H) : 88.00 x 7.00 x 4.00 cm

Packing Size (L x W x H) : 98.00 x 8.50 x 5.00 cm

G.W / N.W : 2/1.86 kg

DESCRIPTION : Using 1W Linear LED tube, each module have 4 pcs leds,having 20 kinds of flash pattern with color change,Last flash pattern memory recall





Dual color traffic advisor

Ultra bright design with direction function

Multiple flash patterns

Waterproof,humidity and shakeproof

Golden lights^TM features a high intensity wide-angle light spread and is easy to mount.





DC12V

Product Dimension:880mm(L)x70mm(W)x35mm(H) (34.6''x2.8''x1.4'')

Light source:1W Gen-3rd LED Linear tube,total 32 pcs LEDs,8 pcs of led modules,each module have 4pcs leds

LED Power:32W

Frequence:1~4HZ

Eight wires out,Without controller

Waterproof ready for exterior mouting,IP65

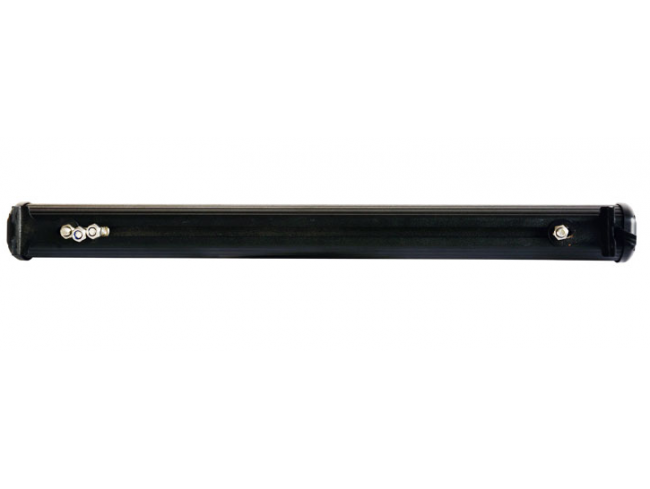

Mounting:Set indoor or outdoor high intensity screw

Aluminum base easy to cooling and PC (Polycarbonate) Lens

Use special microchip controlling circuit

Visible during daytime conditions

Life span:100000hrs

3 years warranty on Golden^TM Lightheads

Meets CE,Rohs,ISO14001 Specifications

Water-proof, Anti-shake, -30 to +70 degree temperature

Many kinds of flashing patterns with color change, synchronized working,pattern memory​

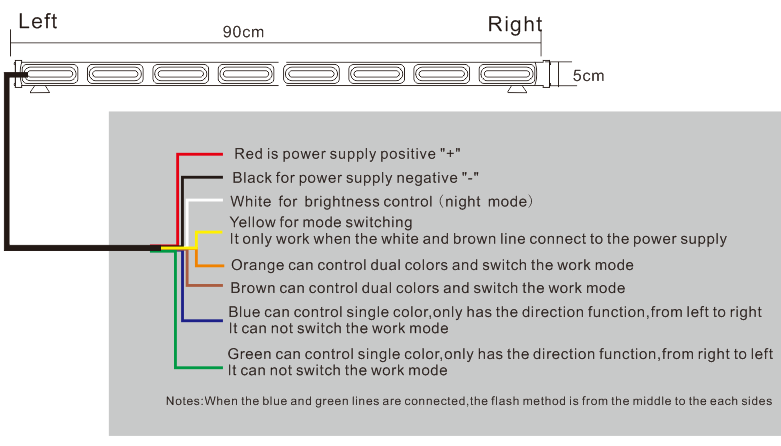

​Note:The functions of the eight wires

Image:

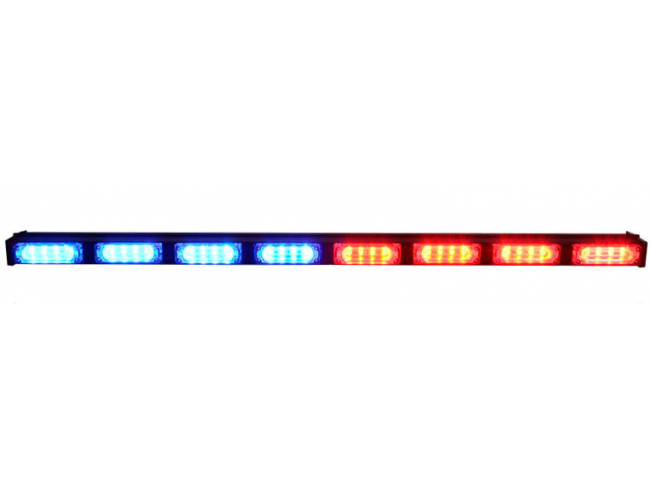

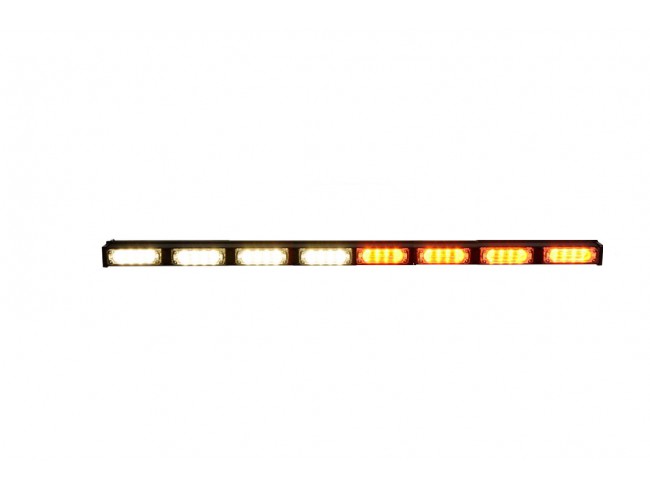

RED/BLUE→AMBER;BLUE/BLUE→AMBER;RED/RED→AMBER;AMBER/WHITE→AMBER...   can be produced as your required

Flash patterns can be customized

Various length is available,can be 4,6,8,10 or 12 pcs led modules

DC 12V OR 24V
