STB-701B

Item No: 577

Product Description

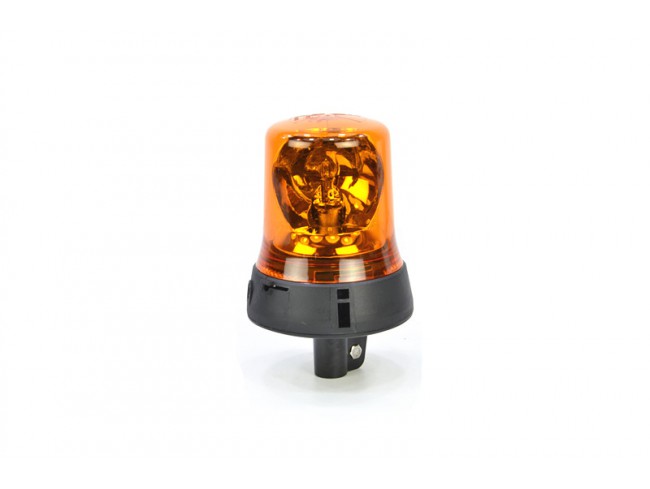

HALOGEN 55W ROTATOR WARNING LIGHT WITH POLE FIX NO.STB-701B

Weight : 1.22 kg
Product Size (L x W x H) : 15.20 x 15.20 x 19.00 cm
Quantity : 1 pcs/carton
DESCRIPTION : 55W, DC12V, Halogen Ratating beacon with pole fix, PC lens, Anti-shake


Features


Golden lightsTM features a high intensity wide-angle light spread and is easy to mount.
Good performance,Waterproof,Dust proof,Shockproof.
Installed Easily for the different kinds of vehicles.
Longer life span,lower cost ,lower energy comsumption.
Optimized reflector design gives an excellent light efficiency with beautiful appearance.


Specification


Standard Model:
Power:  55W
Size:152.4mmLx241.3mmH
Operating Voltage:DC 12V
Light source:Halogen Rotate type,H1 bulb provides reliable and high brightness warning signals
Ratational Speed:180 ROM nominal
With standard cigarette plug for magnetic version and easy wirings for all other types
Superior driven system enable a reliable and low-noise working of this beacon
Amber color
Material:PC Lens
Waterproof Rate:IP 67
Net Weight:0.75KG
Working temperature:-50~80 Degree

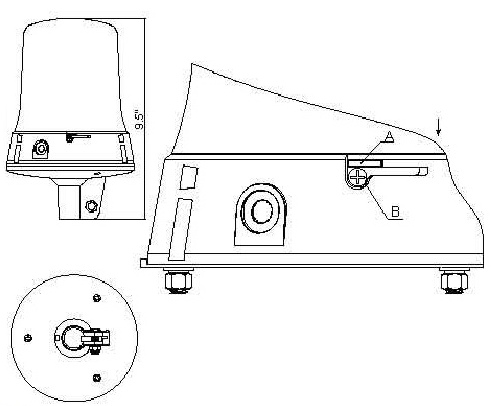

Mounting Bracket:The Pole mount type
The pole mount type features a DIN A mount specification which provides a standard mounting socket for all type of vehicle internationally
Recommended tightening torque:Single bolt:7Nm,Three bolt:3Nm,DIN A:3Nm
Compliant to ECE,R65 and E-mark regulations
Operating Temperature:-30 to +50 degree
3 Years Warranty on GoldenTM Lightheads

Options


DC12V or DC24V
Power: 55W or 70W
Mount:Single-bolt,three-bolt,magnetic and pole mount options are available to meet needs of different mounting applications.
Color:Red,Blue,Amber ,White color outer cover potional.
Two Standard pole sockets are available for DIN A mounting

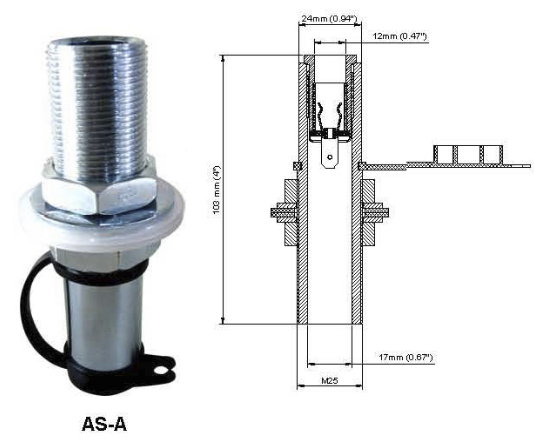

          1.AS-A

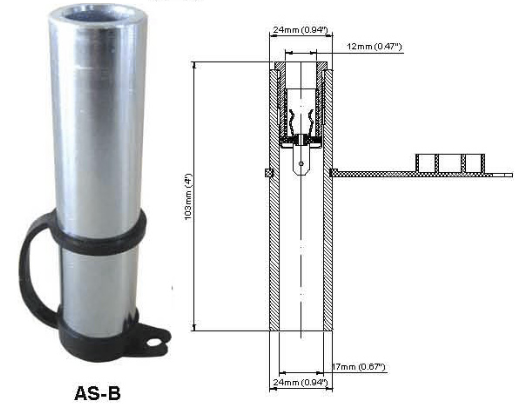

          2.AS-B
